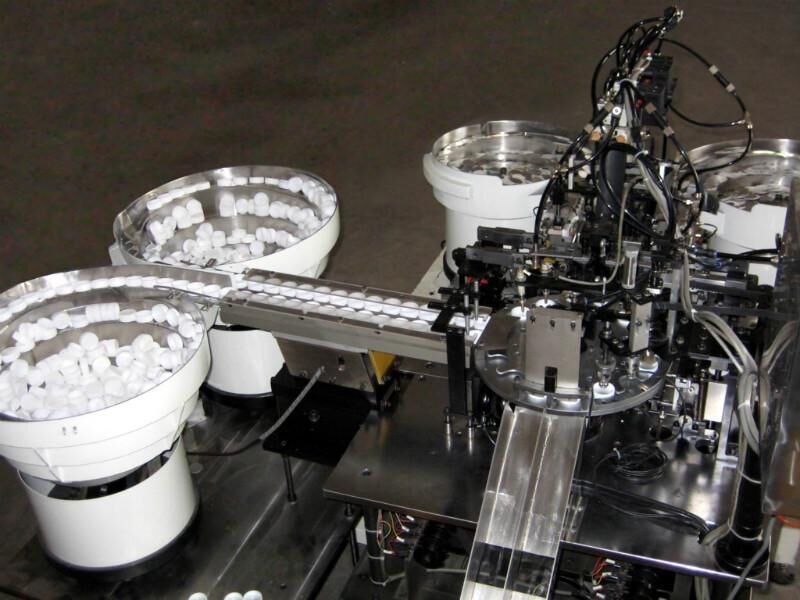

Curtain pulley automatic assembly machine

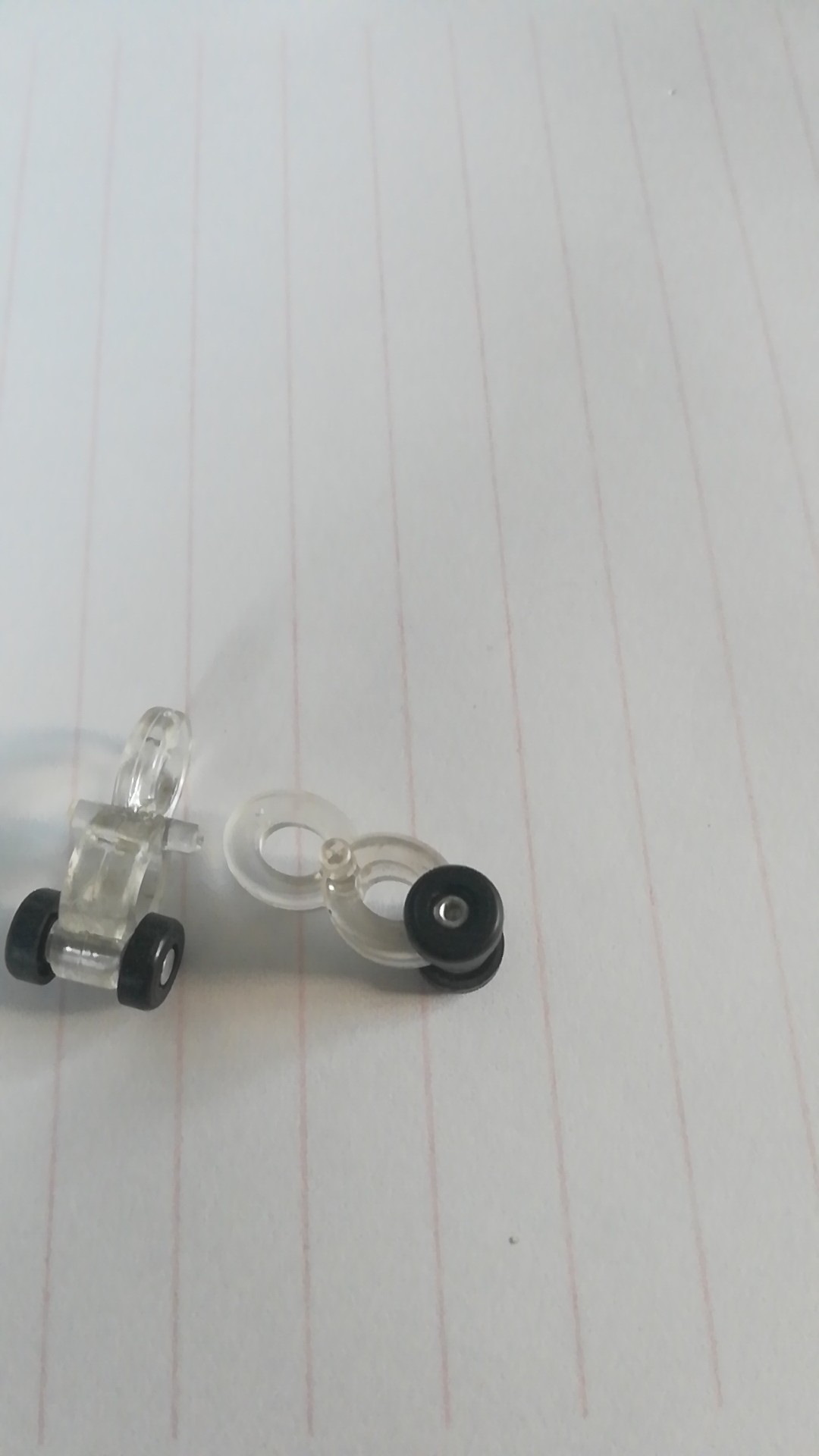

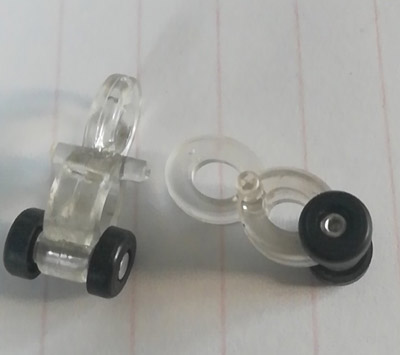

CURTAIN PULLEY AUTOMATIC ASSEMBLY MACHINe， As the name implies， is designed to the window wheel hanging wheel automatic assembly equipment.    (Click to see video)

Function

1. All the materials adopt vibration plate automatic bedding material, sorting, feed.

2. The Robot-hand automatically complete every parts of material, assembly, pressure riveting, infrared automatic recognition, positioning precision.

3. When missing pack, faulty pack, it automatic stop and alarm processing, high intelligence.

4. Pneumatic components are SMC the brand, guide rail, screw driver are using the silver brand, as the PLC and touch screen are using Mitsubishi or Delta brand.

parameters

• Model: ZP17

• Power: 0.75 KW

• Voltage: 220V  50HZ

• Air Pressure： 5－7KG

• Working efficiency: 1.5-2 sec/pcs, that is you can finish 30-40 pieces in one min


•
